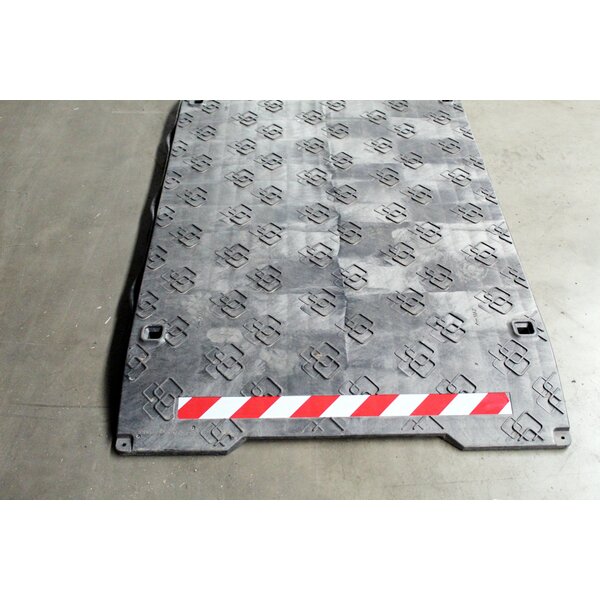

Construction site footbridge - without handrail

Polyethylene (HDPE) with red-and-white stripes

• Floor plate in solid black HDPE, UV-resistant for outdoor use
• Handrails in steel (powder-coated, RAL 7040 or RAL 1023) for maximum durability
• Option to install removable handrails (not included)
• Stackable and easy to store
• Equipped with anti-slip profile on the floor plate
• Lightweight (20 kg) and easy to move via sturdy integrated handles
• Red-and-white marking on the floor plate for better visibility
• Passage can be easily widened using male/female connectors
• Floor plate can be anchored to the ground (fastening materials not included)
• Load capacity up to 1000 kg — suitable for pedestrians, wheelchairs, and light vehicles or construction machinery
• Compliant with DIN 4420‑1 (scaffolding stability & load-bearing) — ensures strength and safety
• Compact size (1700 × 1000 mm), practical for transport and storage
• Length: 1.700 mm
• Width: 1.000 mm
• Height: 150 mm
• Weight: 16 kg

Our plastic pedestrian bridges provide a safe and comfortable passage for pedestrians, wheelchair users, and light traffic during excavation work or open trenches. They enhance safety on the construction site and contribute to a professional and organized working environment.

The floor plate features a durable anti-slip profile on both the top and bottom, ensuring excellent grip under all weather conditions. For maximum stability, the bridges can be easily anchored on asphalt, concrete, or paving stones.

Thanks to the convenient male/female connectors, the passage can be quickly widened, allowing light vehicles or construction machinery to safely use the crossing. For extra visibility, the bridges are equipped with red-and-white markings on the front and rear.

Due to their low weight and sturdy integrated handles, a single person can effortlessly place, move, and store the bridges.

Because of its dimensions only deliverable by an external forwarder, pallet transport or collection at our warehouse.
